Corner 20 profile 20x20

Corner 13 profile

Corner 12 profile

Corner is an anodised aluminium profile available in three sizes: Corner 12 (12x12 mm), Corner 13 (13x13 mm) and Corner 20 (20x20 mm). Corner backside is free of grooves: this makes it both functional for the fixing and aesthetically pleasing. Corner is the right solution for illuminating under cabinets and showcases because it allows you to direct the luminous flux. Corners 12, 13 and 20 mount a flat screen with an emission angle of 45°; Corners 12 and 20 mount an angle screen which directs the beam angle for a "square effect". Corners 12 and 13 accommodate strips with a maximum width of 7.5 mm for a rated power of 12 W/m; Corner 20 accommodates 12 mm strips for a rated power of 20 W/m.

Installation
  • Ceiling
  • Wall applications
Cable exits & resins
  • Resin and cover

Profile and components

Corner 20 profile 20x20 20x20

Frosted cover angular

Clear cover

Frosted PCB cover

WARNING! For this profile, the side of the power cable outlet needs to be specified: L or R.

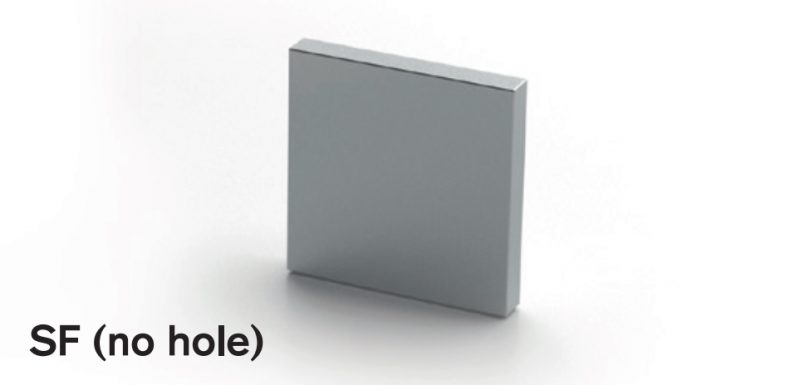

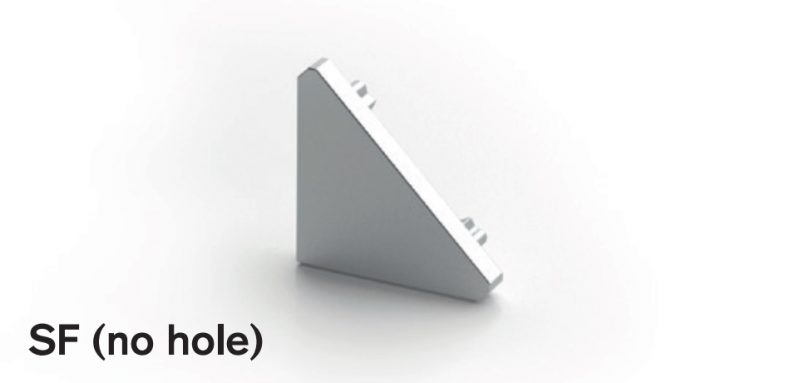

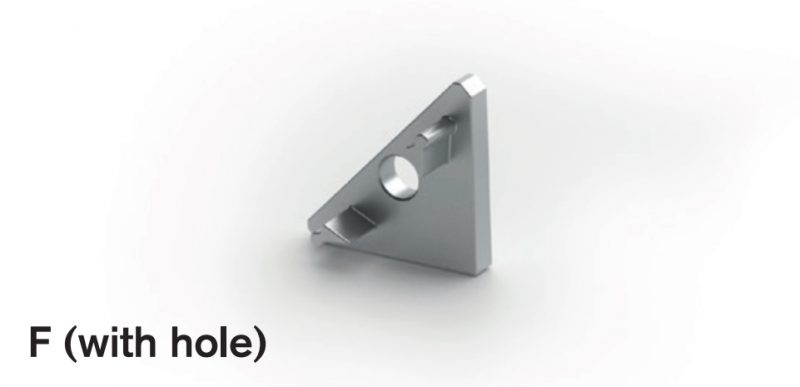

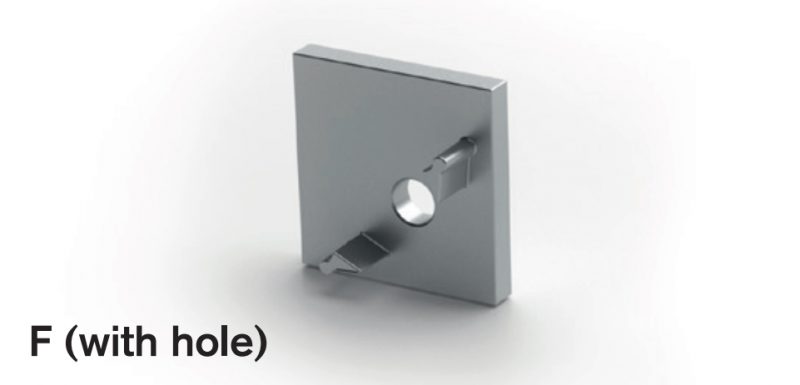

End caps: with hole (F), without hole (SF)

End cap kit for Corner 20 flat

End cap kit for Corner 20 angular

Matching Strips

  • Decor 140 HP
  • Decor 140 LP
  • Decor 140 MP
  • Decor 216
  • Easy 2835-96
  • Easy 3528-120
  • Easy 3528-120 colors
  • Easy 3528-120 Dynamic White
  • Easy 3528-120 RGBW
  • Easy 3528-180
  • Easy 3528-60
  • Easy 5050-30
  • Easy 5050-30 RGB
  • Easy 5050-60
  • Easy 5050-60 RGB
  • Evo 140 HP
  • Megaslim 140 LP
  • Megaslim 140 MP
  • Micro Easy 3528-120 colors
  • Micro Easy 3528-180 white
  • Microdecor 180
  • Queen 140 HP
  • Queen 140 LP
  • Queen 140 MP
  • Sunshine 72
  • Sunshine 96
  • Superstrip 10
  • Superstrip 3
  • Superstrip 36
  • Superstrip 72
  • Uniform 216
  • Uniform 288

Accessories

Vertical 90° joining rear plate for Corner 20
Magnet + plate kit
Mounting clip kit
Rear joining plate kit
Kit of two safety cords
Magnet kit for metallic structures
